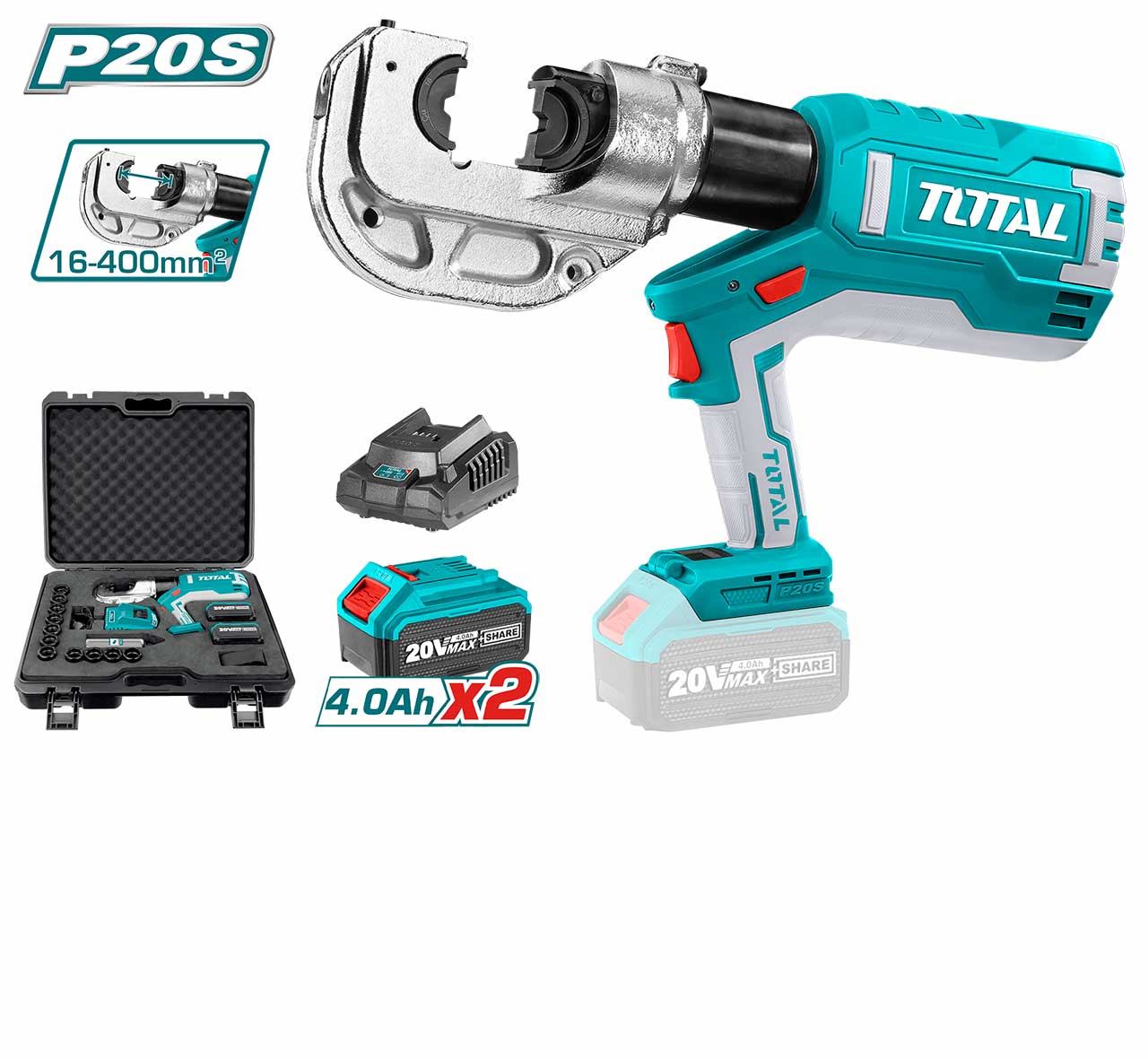

LITHIUM-ION HYDRAULIC CRIMPING TOOL 20V

TCTLI2002

Rotatable head design with built-in LED display to provide usage count.
Pressing cycle last 6-18 seconds, depending on the size of the cable.
Package comes with,
12 pcs Crimping dies: 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm²
2 pcs 20V 4.0Ah Batteries
1 pc Fast Intelligent Charger
1 set Cylinder seal
1 pc Protective seal
1 set Valves
1 pc Hydraulic fluid
1 pc Carrying strap
All items packed in a carrying case.
1 Year Limited Warranty

Specifications
Model no. TCTLI2002
Voltage 20V ⎓
Dimensions 61cm * 51cm * 15cm
Rated speed 6s – 18s (depends on the size of the cable)
Clamp size 16mm² – 400mm²
Battery 2 pcs 20V Lithium-ion 4.0Ah batteries
Charger 1 pc 2 hours charger
Charger volts 100-240V ~ 50/60Hz
Working length Stroke (Travel): 42mm
Weight 17kg
Max. force 12kN
